Natural Convection Oven

DVS402C/412C/602C/612C

Description:

Programmable natural convection constant temperature drying ovens incorporating programmable operation functions and enhanced safety features and operability

Operation and functions

  • Excellent temperature accuracy
  • Easy to use and maintain
  • Equipped with a 6 pattern PID program controller with easy program settings (30 steps x 1, 15 steps x 2, 10 steps x 3)
  • Simultaneous display of set constant and measured temperature
  • Quick Auto stop, Auto Stop, Auto Start operations
  • Increased safety and self-diagnostic functions
  • Calibration off-set function

Safety features

  • Self-diagnostic  functions  (Temp.  sensor abnormal,  Heater  disconnection,  Internal communication  error,  temperature  input circuit  abnormality, Automatic  overheat prevention function, SSR-short), Overheat prevention, Electric leakage breaker with over current protection
ModelDVS402C
DVS412C
DVS602C
DVS612C
Circulation methodNatural convection
Operating temp. rangeRoom temp.+5 to 260°C
Temp. control accuracy±1.0°C (at 260°C)
Temp. distribution accuracy±5.0°C (at 260°C)
Max. temp. reaching time~90 min. (Room temp. +5°C to 260°C)
Interior materialStainless steel
Exterior materialCold rolled steel plate with melamine resin baking finish
Heat insulating materialGlass wool
HeaterStainless pipe heater / 1.2kWStainless pipe heater / 1.36kW
Observation window250×280 mm Chemically strengthened glass x 3
Cable hole30 mm l.D.×1 pcs. (right side)
Exhaust port30 mm l.D.×2 pcs. (on top)
Temp. controller3 patterns program controller, PID control by microprocessor
Temp. setting methodOperation menu key and Digital setting by ▲/▼ key
Temp. display methodMeasurement temp. : Digital display by green LED / Setting temp. : Digital display by red LED
Timer1 min. to 99 Hrs. 59 min. and 100 Hrs. to 999 Hrs. 50 min.
Operation functionFixed temperature operation, Program operation, Auto start, Auto stop, Quick Auto-stop
Program modeProgram operation: 6 pattern, 30 steps (30 steps×1, 15 steps×2, 10 steps×3)
Additional functionsCalibration off-set function, Key lock, Uninterruptible power for memory, Pattern repeat function
Heater circuit controlSSR control
SensorK-thermocouple
Safety deviceSelf diagnostic functions (temp. sensor abnormal, Heater disconnection, SSR- short, Memory abnormal, Automatic overheating prevention), Overheat prevention, Electric leakage breaker with over current protection
Internal dimensions (W×D×Hmm)450×490×450600×540×500
External dimensions (W×D×Hmm)560×601×820710×651×870
Internal capacity99L162L
Shelf plate load~15kg / pcs.
Shelf rest step number / pitch9 steps / 30mm13 steps / 30mm
Power source 50/60HzAC115V 12A
AC220V 6.5A
AC115V 13.5A
AC220V 7.5A
Weight~48kg~63kg
Shelf plate / Shelf bracketStainless steel, 2 pcs. / 4 pcs.

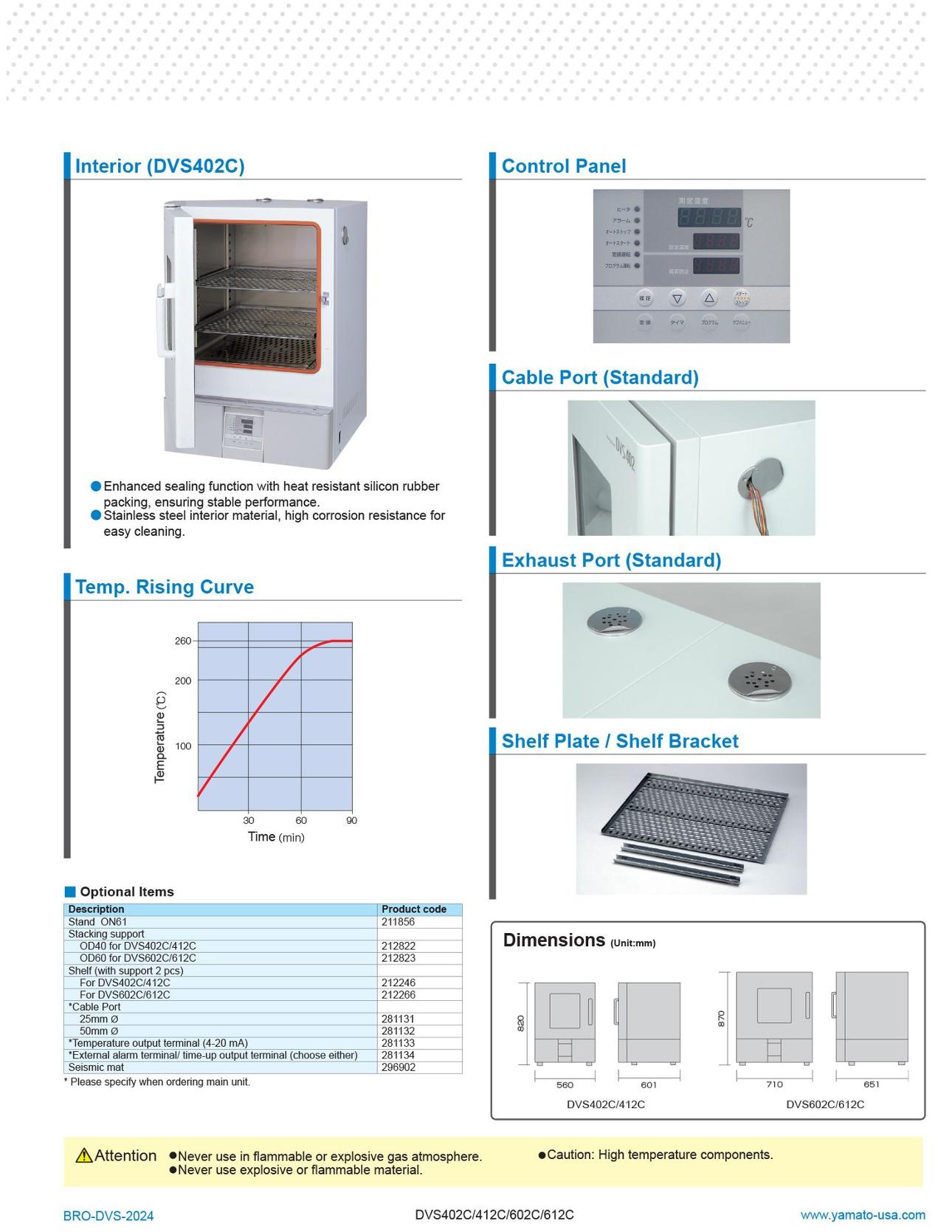

dvs-detail

Click on the links below to download the associated PDFs.


Oven Overview

DVS Series Catalog

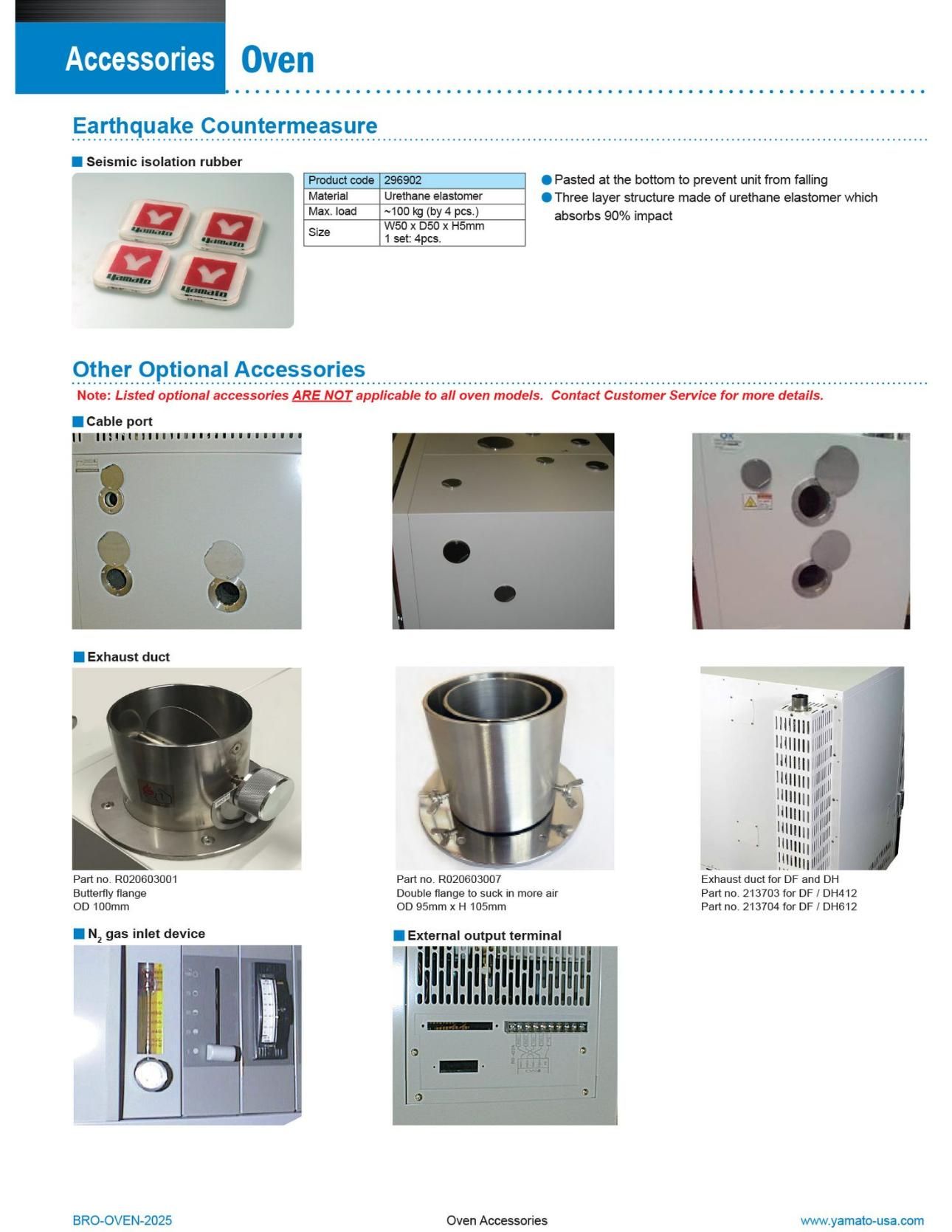

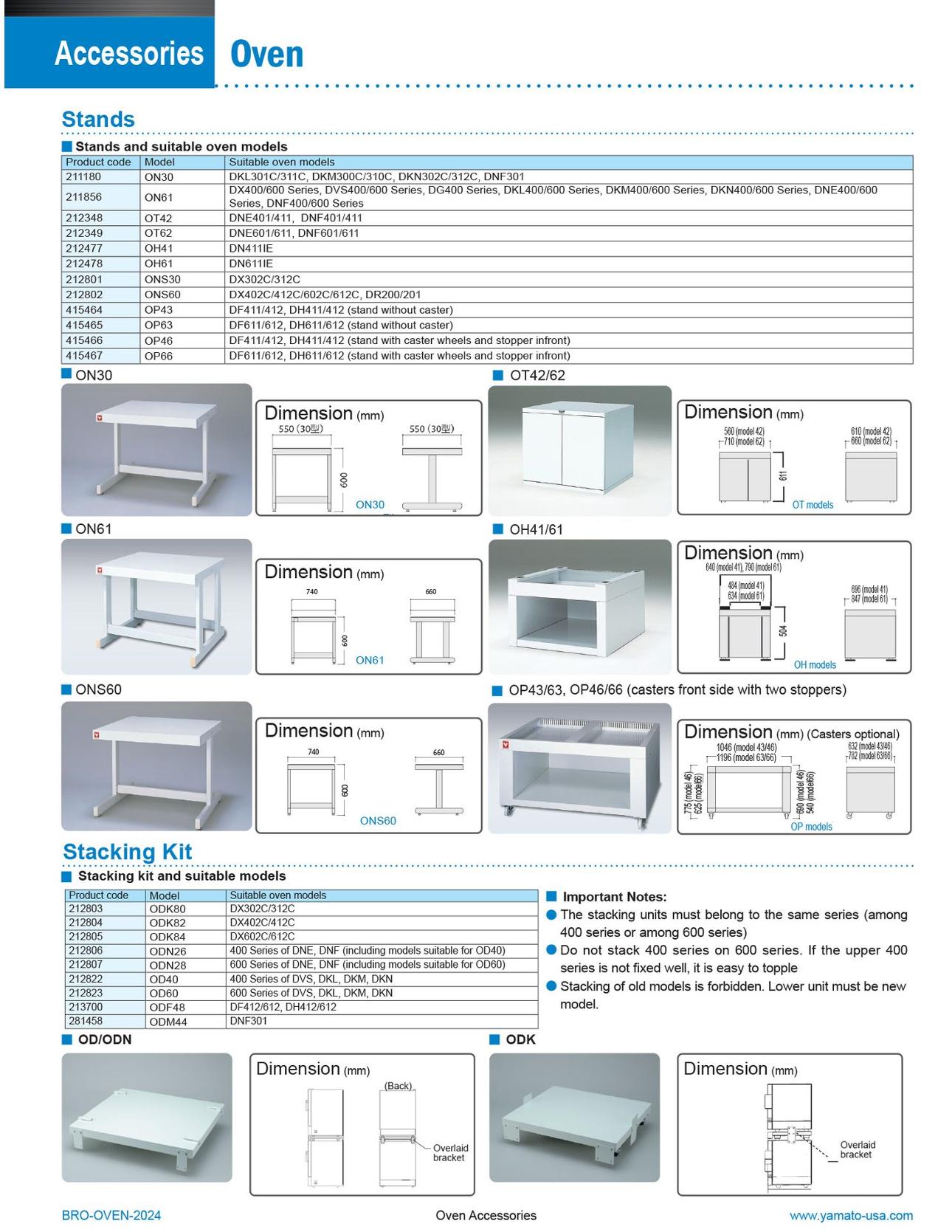

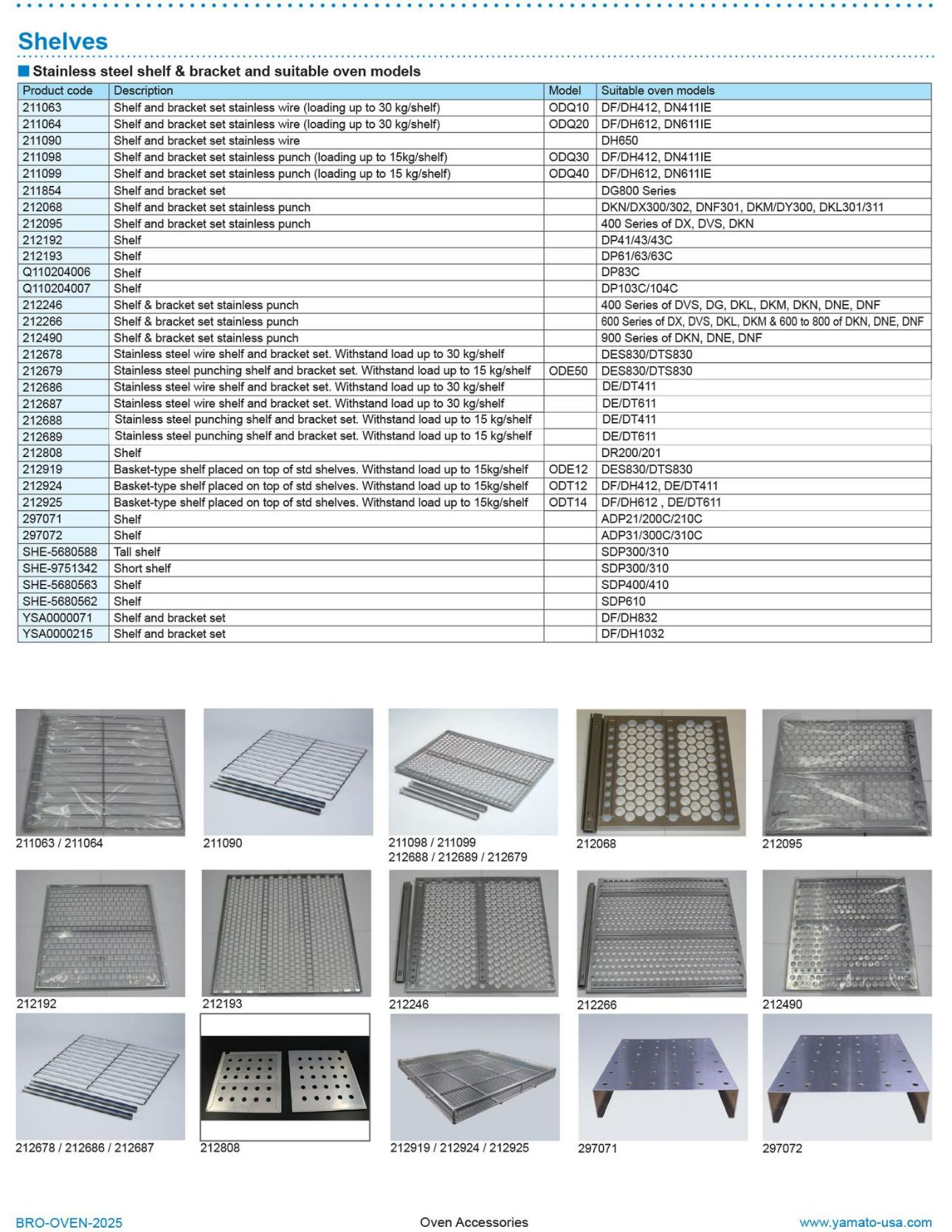

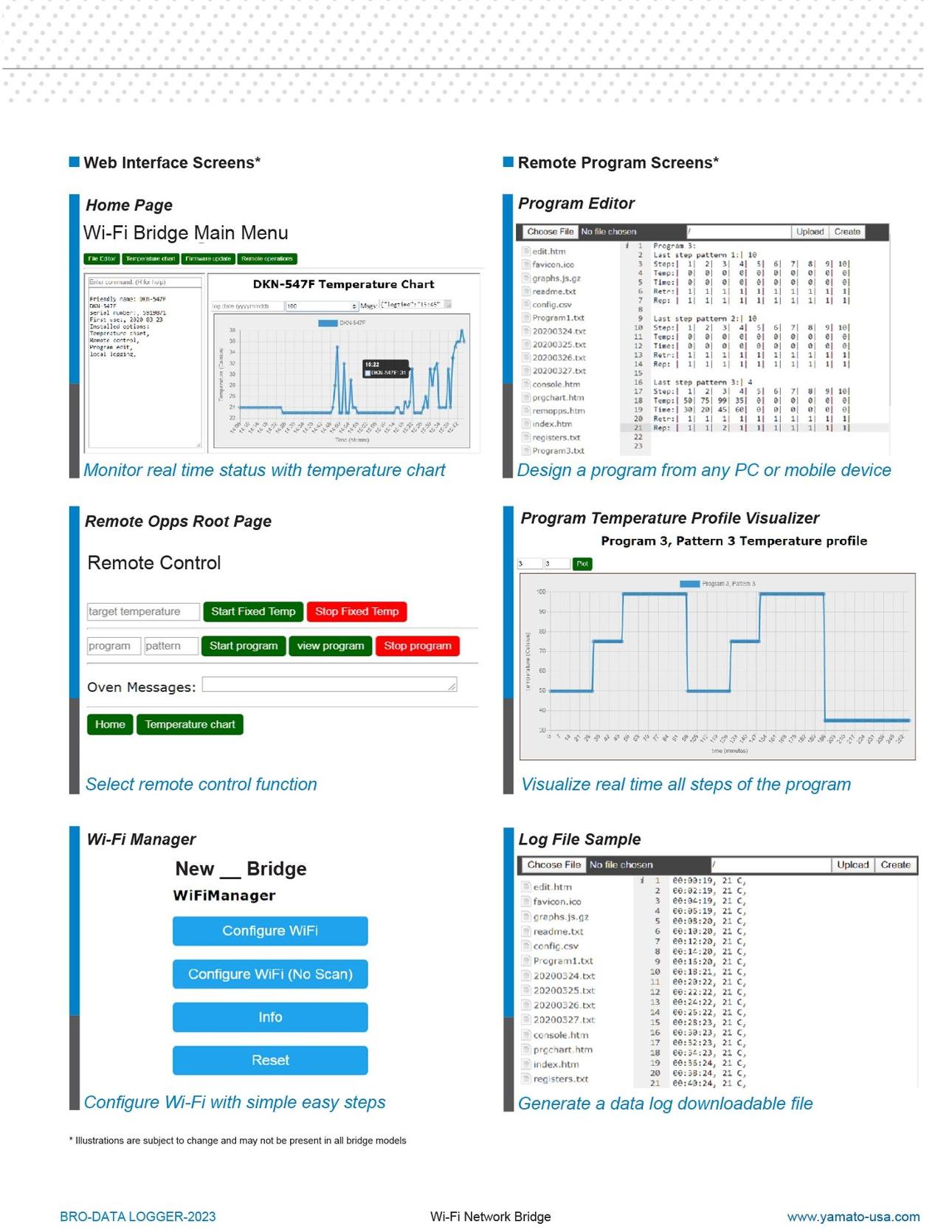

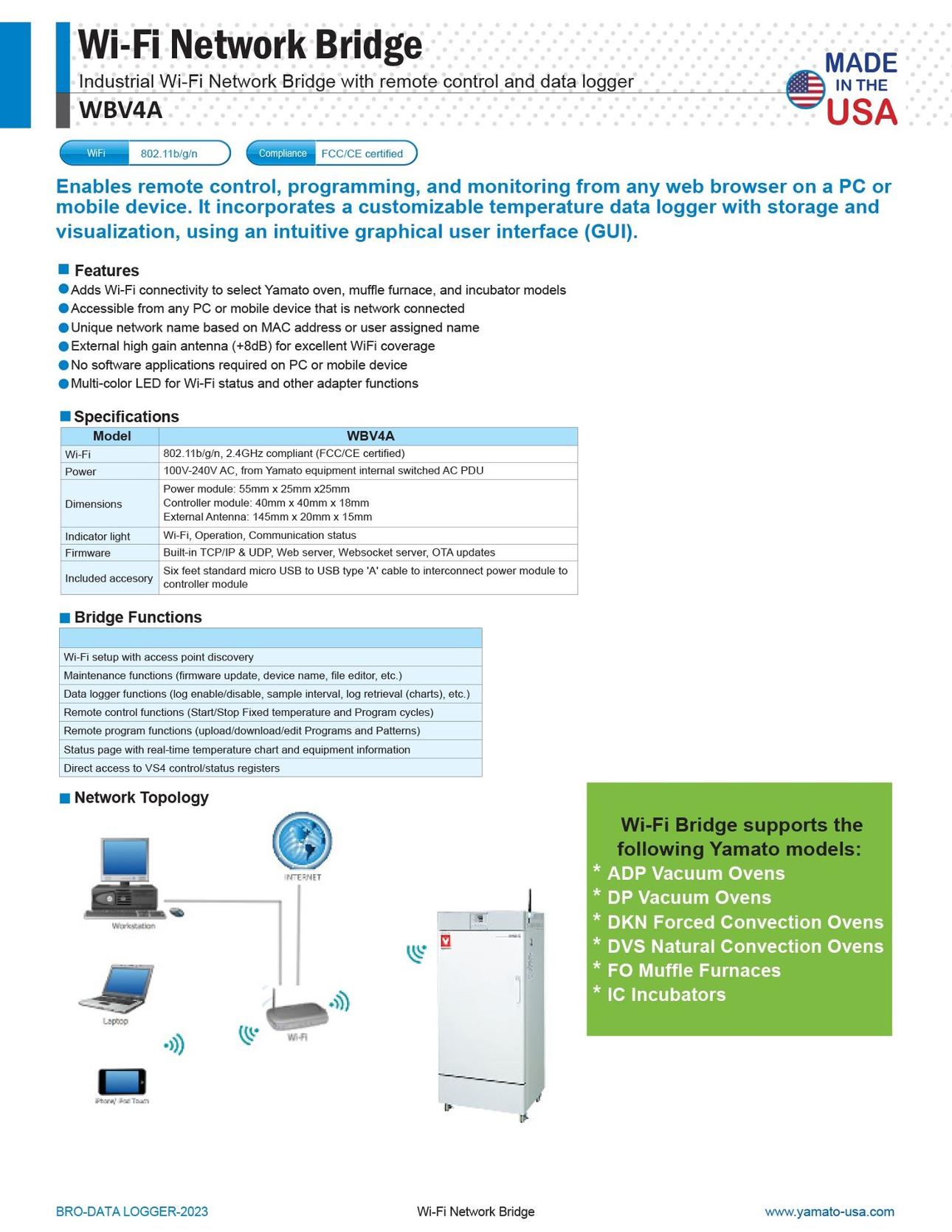

Oven Accessories

To download Operational Manual, visit our Technical Support Center
