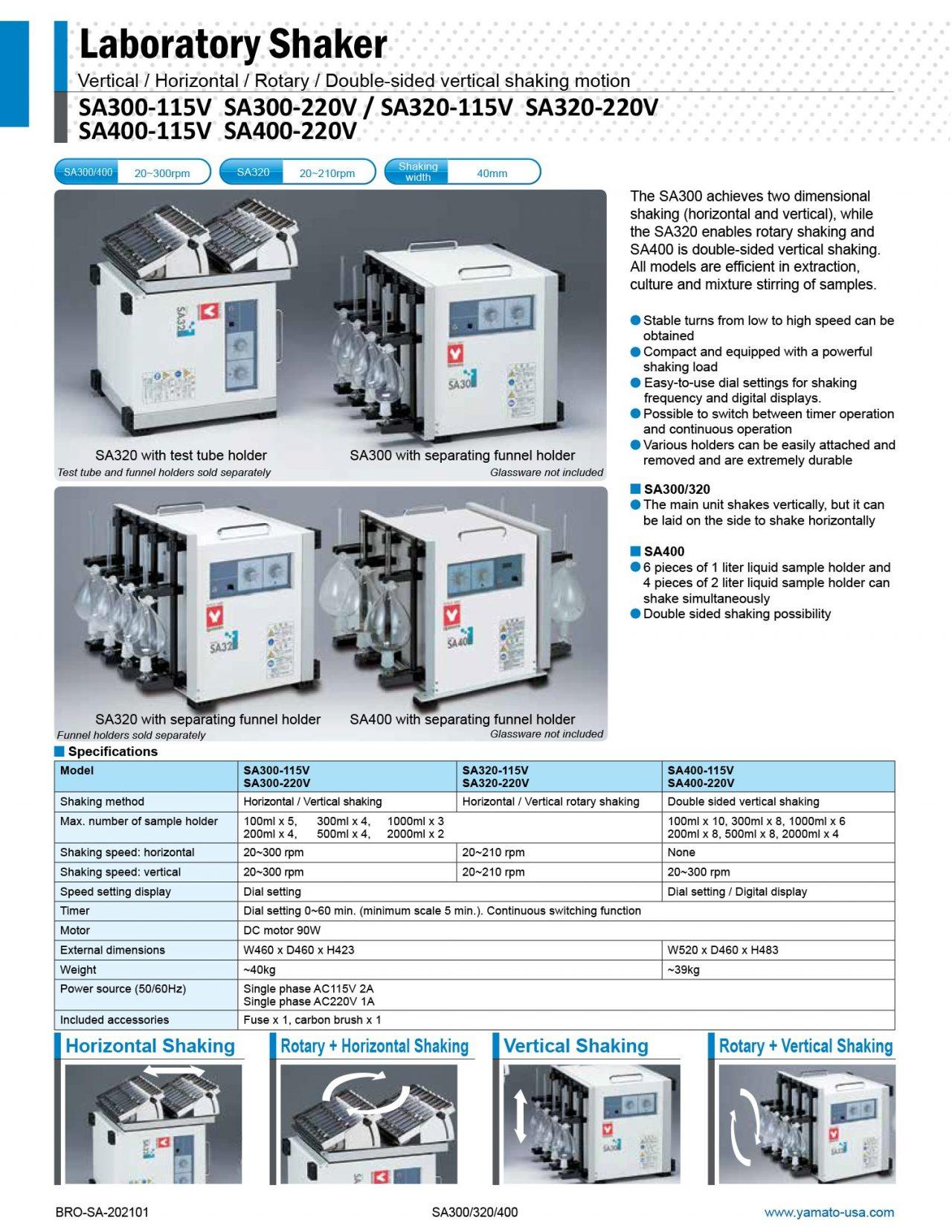

Laboratory Shaker

SA300/320/400

Description

The SA300 achieves two dimensional shaking (horizontal and vertical), while the SA320 enables rotary shaking and SA400 is double-sided vertical shaking.  All models are efficient in extraction, culture and mixture stirring of samples.

Features

  • Stable turns from low to high speed can be obtained
  • Compact and equipped with a powerful shaking load
  • Easy-to-use dial settings for shaking frequency and digital displays
  • Possible to switch between timer operation and continuous operation
  • Various holders can be easily attached and removed and are extremely durable

SA300/320

  • The main unit shakes vertically, but it can be laid on the side to shake horizontally

SA400

  • 6 pieces of 1L liquid sample holder and 4 pieces of 2L liquid sample holder can shake simultaneously
  • Double sided shaking possibility
ModelSA300SA320SA400
Shaking methodHorizontal / Vertical shakingHorizontal / Vertical rotary shakingDouble sided vertical shaking
Max. number of sample holder100ml x 5, 300ml x 4, 1000ml x 3
200ml x 4, 500ml x 4, 2000ml x 2
100ml x 5, 300ml x 4, 1000ml x 3
200ml x 4, 500ml x 4, 2000ml x 2
100ml x 10, 300ml x 8, 1000ml x 6
200ml x 8, 500ml x 8, 2000ml x 4
Shaking speed: horizontal20~300 rpm20~210 rpmNone
Shaking speed: vertical20~300 rpm20~210 rpm20~300 rpm
Speed setting displayDial settingDial settingDial setting / Digital display
TimerDial setting 0~60 min. (minimum scale 5 min.). Continuous switching function
MotorDC motor 90W
External dimensions WxDxH460 x 460 x 423 mm460 x 460 x 423 mm520 x 460 x 483 mm
Weight~40kg~40kg~39kg
Power source 50/60HzSingle phase, AC115V 2A / AC220V 1A
Included accessoriesFuse x 1, carbon brush x 1

sa-detailpage_1

sa-detail

Click on the links below to download the associated PDFs.


SA Series Catalog

To download Operational Manual, visit our Technical Support Center
